Name: Straight-line Wire Drawing Machine with Long Service Life, Human Computer Interaction (HMI), and High Automation for Industrial Use
Brand: Wuxi Tripod Machinery Imp. & Exp. Co., Ltd.
Price: 10 USD
Availability: InStock

বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন

বৈশিষ্ট্য

বিশেষ উল্লেখ

ইনলেট ব্যাস: 8

আউটলেট ব্যাস: 0.8

ভোল্টেজ: 380/415/440/220

শক্তি: 7.5~110KW

ওজন: 2000

রিল ব্যাস: 900/800/700/560/400 মিমি

অঙ্কন পাস: 9/9/9/10/10

তারের গতি: 300/360/480/720/840 মি/মিনিট

প্রসার্য শক্তি: ≤1300 এমপিএ

মোট হ্রাস: 87.24~90.12%

গড় হ্রাস: 18.42~21.00%

মোটর পাওয়ার: 110~7.5 কিলোওয়াট

মূল উপাদান: গিয়ার, গিয়ারবক্স, বিয়ারিং

কুলিং পদ্ধতি: জল এবং বায়ু শীতল

কন্ট্রোল সিস্টেম: সিমেন্স পিএলসি

বিশেষভাবে তুলে ধরা:

Long Service Life Wire Drawing Machine

Human Computer Interaction Wire Drawing Machine

High Automation Straight-line Wire Drawing Machine

মৌলিক তথ্য

উৎপত্তি স্থল: জিয়াংসু, চীন

পরিচিতিমুলক নাম: DURA

প্রদান

গ্যালারী

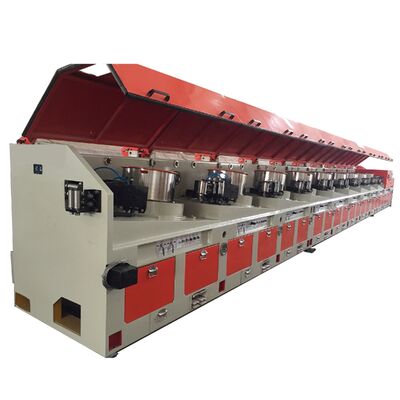

Straight-line Wire Drawing Machine with Long Service Life, Human Computer Interaction (HMI), and High Automation for Industrial Use

পণ্যের বর্ণনা

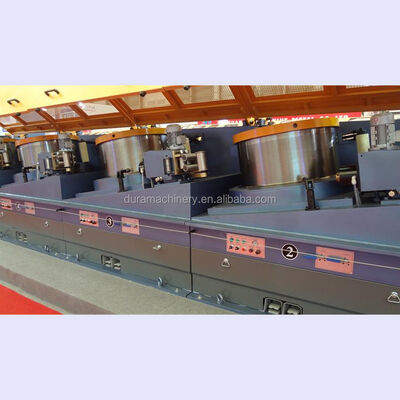

Straight-line Type Wire Drawing Machine

Product Overview

Our straight-line wire drawing machine incorporates advanced foreign technology to deliver superior performance for drawing steel wire with high tensile strength. This equipment is specifically designed for producing tire cords, bead wires, steel rope wire, stainless steel wires, and CO₂ gas shield welding wires.

Advanced Features & Technology

Human Computer Interface (HMI) for intuitive operation
Motor overheat protection system
Abnormal water pressure monitoring
Length counting and preset length alarm
Breakdown display for quick diagnostics
Advanced cooling system combining narrow seam water cooling with air blowing
SIEMENS PLC and AC Variable Frequency Inverters for precision control
High efficiency with easy operation and automation
Wide technical range for versatile applications

Technical Specifications

Items	Unit	LZ9/900	LZ9/800	LZ9/700	LZ10/560	LZ10/400
Reel diameter	mm	900	800	700	560	400
Number of drawing passes	n	9	9	9	10	10
Inlet diameter	mm	14~8	10~8	8~6.5	6.5~5.5	3.5~2.5
Outlet diameter	mm	5~3	5~3	3~2.5	2~1.8	1.1~0.8
Wire drawing speed	m/min	300	360	480	720	840
Tensile strength	Mpa	≤1300	≤1300	≤1300	≤1300	≤1300
Total percent reduction	%	87.24~85.94	84.00~85.94	85.94~85.21	90.53~89.29	90.12
Average percent reduction of area	%	20.48~19.58	18.42~19.58	19.58~19.13	21.00~20.02	20.50
Motor power range	KW	110~90	90~55	75~55	37~22	15~7.5

Customer Support Services

Pre-Sales Services

Inquiry and consulting support
Sample testing assistance
Factory viewing opportunities

After-Sales Services

Machine installation training
Comprehensive operational training
Overseas engineering support
